Area

h \text{ at } 90^\circ \text{ to } b

perpendicular height

The distance from the base to the opposite side or corner, at a right angle (∟) to the base. A slanted side is longer, and is not the height.

A = b \times h

area of a parallelogram

Cut the triangle off one end and move it: a rectangle with the same base and height.

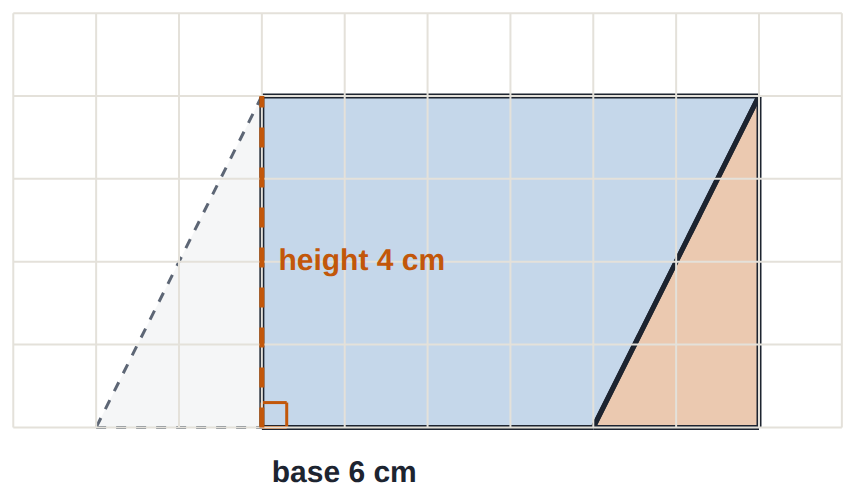

A parallelogram cut and rearranged into a 6 by 4 rectangle

A = \tfrac{1}{2} \times b \times h

area of a triangle

Two copies make a parallelogram with the same base and height; the triangle is half.

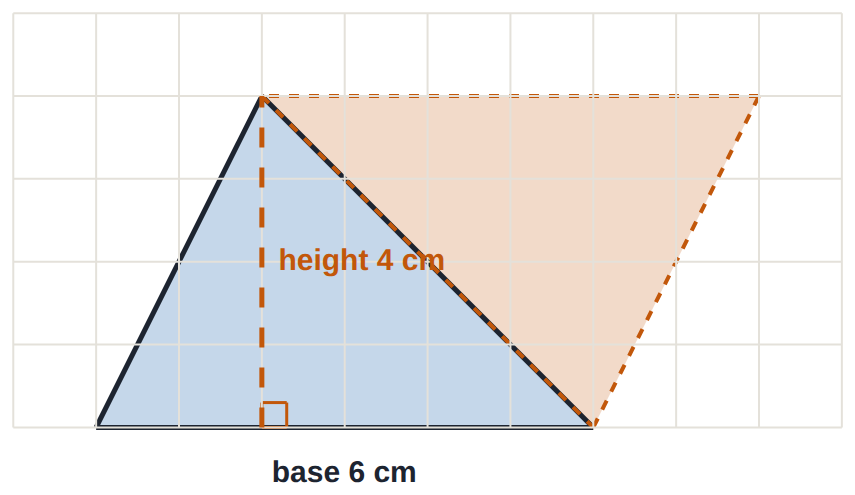

A triangle and its turned copy make a parallelogram

24 + 9 = 33 \text{ m}^2

composite area

Split the shape into rectangles and triangles and add the parts, or subtract a missing part from a bigger shape. Put every length in the same unit first.

1 \text{ m}^2 = 10\,000 \text{ cm}^2

square units

Area counts squares: cm², m². A 1 m square is 100 cm by 100 cm.

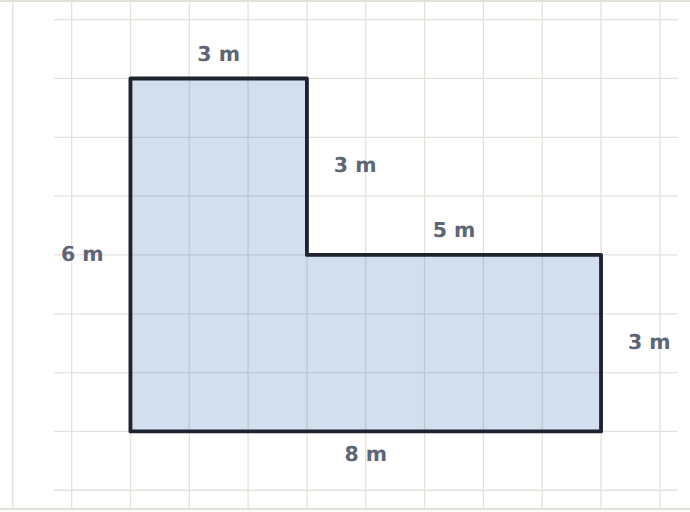

A = 8 \times 6 - 5 \times 3 = 33\ \text{m}^2

composite area

Cut the shape into pieces you know and add their areas, or take the missing pieces away from a big rectangle. Each piece uses its own lengths.

A \approx (\text{full} + \tfrac{1}{2} \times \text{part}) \times \text{one square}

estimating an irregular area

Count the full squares, add half the part squares, multiply by the area of one square. A finer grid gives a closer estimate.

Volume

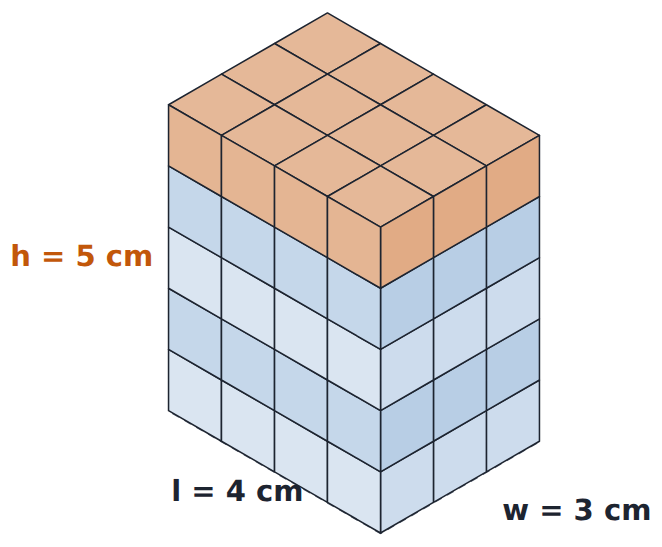

V = A \times h

volume of a prism

Each layer is the base (the cross-section); the height counts the layers. For a box, $V = l \times w \times h$ .

V = \tfrac{1}{2} \times 6 \times 4 \times 10 = 120 \text{ cm}^3

cross-section

The shape that is the same all the way along a prism, like a slice of bread. A triangular prism's cross-section is a triangle: halve first.

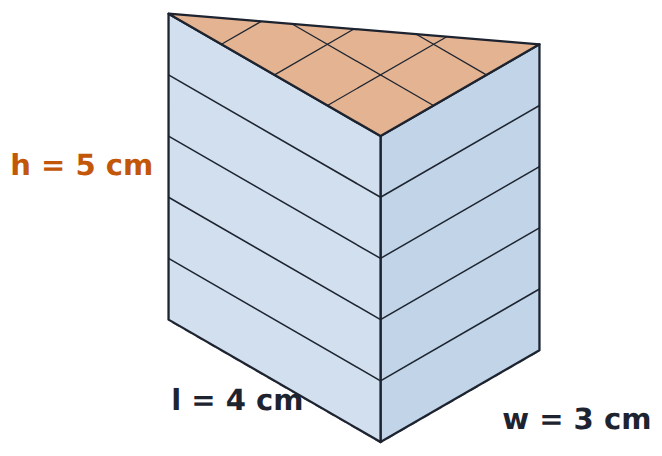

A triangular prism, half of a 4 by 3 box, 5 layers high

1 \text{ cm}^3 = 1 \text{ mL} \qquad 1000 \text{ cm}^3 = 1 \text{ L}

capacity

How much a container holds. A 10 cm cube holds 1 litre.

1\ \text{cm}^3 = 1\ \text{mL}, \quad 1000\ \text{cm}^3 = 1\ \text{L}, \quad 1\ \text{m}^3 = 1000\ \text{L}

volume and capacity

A cubic metre is 100 × 100 × 100 = 1 000 000 cm³: convert each of the three lengths.

V = A h \qquad h = V \div A

volume of a prism

The area of the end times the length, for any right prism. Divide to find a missing length.

Circles

d = 2r \qquad r = d \div 2

radius and diameter

The radius goes from the centre to the edge; the diameter right across through the centre. A chord joins any two points; the diameter is the longest.

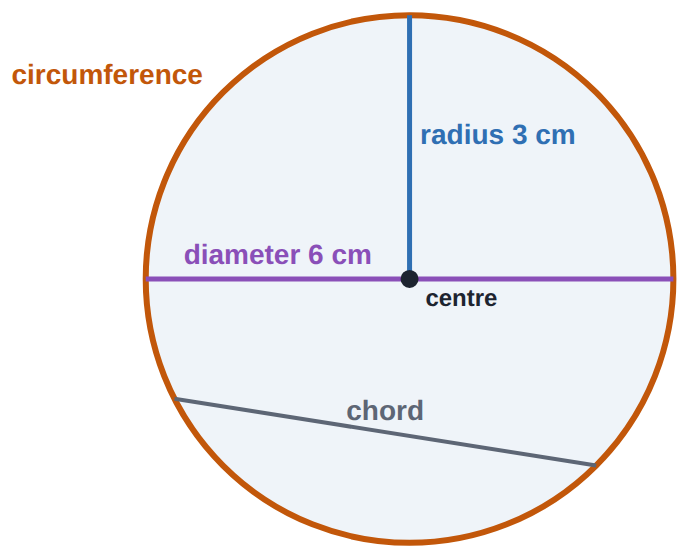

A circle with its centre, radius, diameter, a chord and the circumference

\pi = \frac{C}{d} = 3.14159\ldots

The circumference divided by the diameter: the same for every circle. 3.14 and 22/7 are approximations.

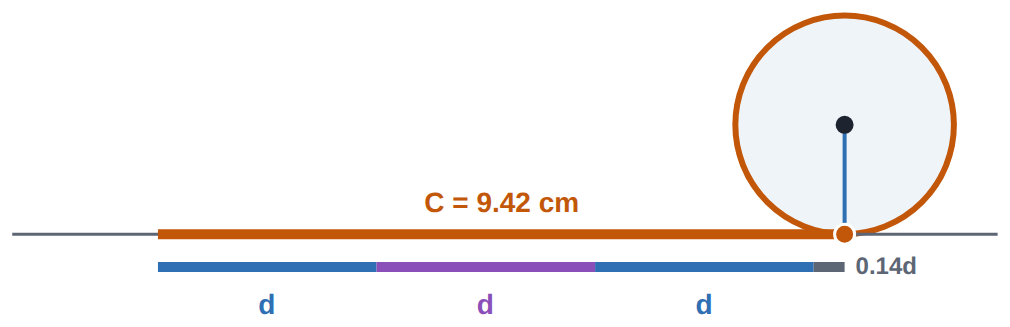

A circle rolled out flat: just over 3 diameters

C = \pi d = 2\pi r

circumference

Use the diameter, or double the radius. Backwards: $d = C \div \pi$ . Exact answers keep π: $10\pi$ cm.

A = \pi r^2

area of a circle

Slices of a circle make a near-rectangle πr long and r high. The area is between 2r² and 4r². Do not mix it up with C = 2πr.

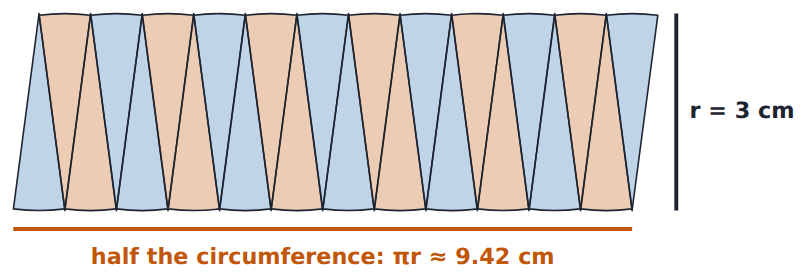

24 slices laid top to tail: nearly a rectangle πr by r

r = \sqrt{A \div \pi}

radius from area

Divide by π, then take the square root. A semicircle is half the area; its perimeter is half the circumference plus the diameter.

Pythagoras

a^2 + b^2 = c^2

Pythagoras' theorem

In a right-angled triangle, the squares on the two shorter sides add to the square on the hypotenuse c, the side opposite the right angle.

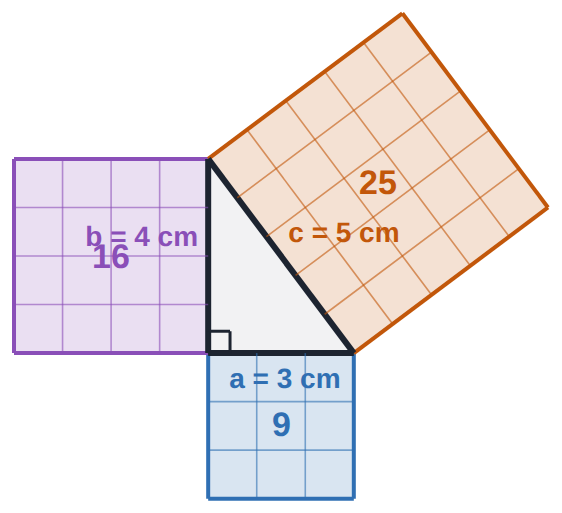

Squares of 9, 16 and 25 on a 3-4-5 triangle

c = \sqrt{a^2 + b^2} \qquad b = \sqrt{c^2 - a^2}

finding a side

Add the squares for the hypotenuse; subtract for a shorter side. Check: the hypotenuse is the longest.

a^2 + b^2 \;\text{vs}\; c^2

right, acute or obtuse

With c the longest side: equal, right-angled; a² + b² smaller, obtuse; bigger, acute. Pythagorean triples: 3-4-5, 5-12-13, 8-15-17 and multiples.

Time zones

\text{bigger offset: ahead} \qquad \text{smaller offset: behind}

time zones

Find the difference between the UTC offsets, add or take it away, and change the day if you cross midnight. For a flight, add the flight time in the departure zone, then change zones.

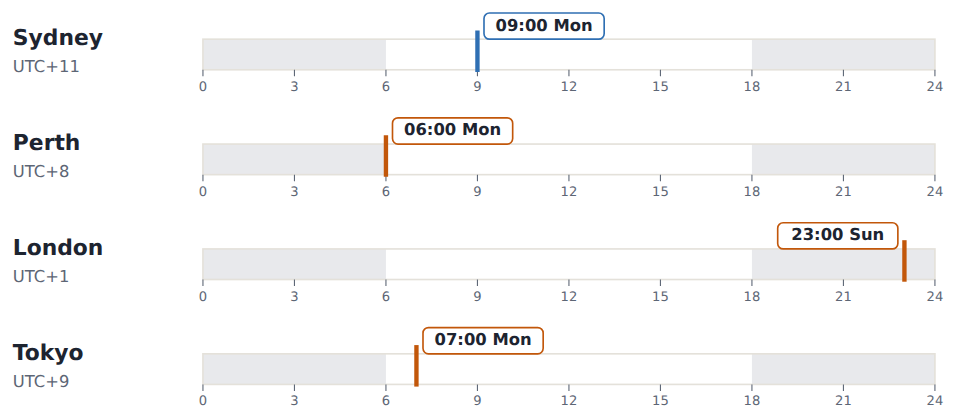

9:00 am Monday in Sydney, and the same moment in Perth, London and Tokyo
