Route the traces

Routing turns every ratsnest line into copper. Two traces of different nets can never touch, so where they must cross, one goes round or drops to the other side of the board. Students route the shield on one layer, then on two, and compare the copper.

Two wires on a breadboard can cross in the air. Two copper traces that touch are a short circuit. How does GND get past OUT?

Routing draws copper along each ratsnest line. Click a pad to start a trace, then click one cell at a time to the next pad of the same net. The board refuses a step that would touch another net: that would be a short circuit.

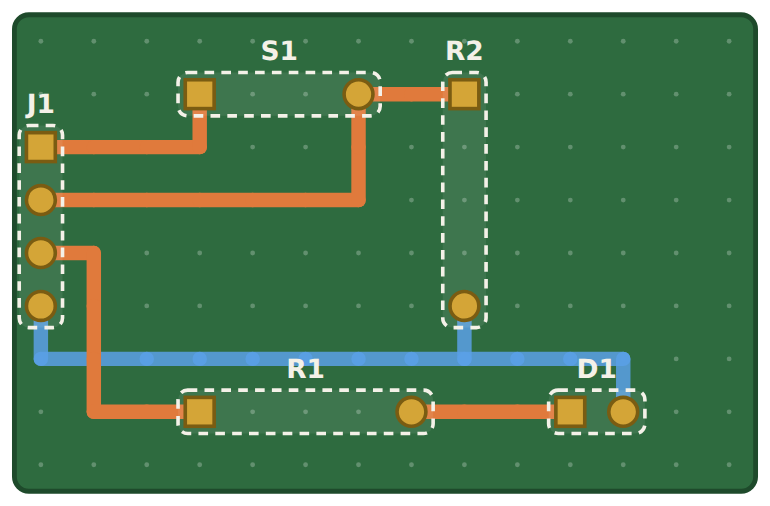

Most boards have copper on two layers: the top and the bottom. The pads of these parts go right through the board, so a trace on either side can reach them. A via is a small plated hole that takes a trace from one side to the other.

PredictRead the problem and decide what you think before you try anything. A wrong guess is fine: it shows you what to look for.

Crossing

GND must get from J1 to R2 and D1, but the OUT trace is in the way. On a board with copper on one side only, what can you do?

TryTry it on the board and compare the result with your prediction.

Try: route on the top

Try it yourselfYour edits are saved in this browser.

Route VCC: click J1's top pad, then step to S1's left pad.

Use the board. This ticks when you get there.

Route OUT (J1's third pad to R1's left pad), then try to route GND (J1's bottom pad) towards R2 on the top layer.

Use the board. This ticks when you get there.

What happened when GND's trace reached OUT's copper?

InvestigateWork out why it happens, one step at a time.

Worked example: round or under?

Worked exampleBefore each step, say what you think comes next.
  1. Round (one layer):\text{Round (one layer):}GND goes down J1's side, along the bottom edge, and back up to D1 and R2.

A detour adds 9 cells of copper. How many extra mm is that, to 1 decimal place?

A trace on the bottom must end at a surface-mount pad, which is only on the top. What does it need?

ModifyChange the problem on purpose and see what happens.

Vary: one side only

Try it yourselfYour edits are saved in this browser.
Need a hint?

Route the short nets first: VCC, LEDA, OUT.

Another hint

IN can finish at S1's pad, then start again from it to reach R2.

Another hint

GND can run down J1's side, along the bottom row and up the right.

Route every net on the top layer only.

Use the board. This ticks when you get there.

PractiseA few on your own, to check you have it.

Routing

Two traces of different nets touch. What is it called?

What is a via?

A board's traces are 52 cells long in all. How much copper is that, in mm, to the nearest mm?

MakeMake your own problem using what you have learned. Expect a few tries; that is normal.

Route it short

Need a hint?

Switch to bottom layer before you start GND.

Another hint

Keep each trace as straight as the parts allow.

Another hint

Undo removes the last step if a trace wanders.

Try it yourselfYour edits are saved in this browser.

Route every net, using both layers, with 100 mm of copper or less.

Use the board. This ticks when you get there.

For teachers

Students route copper traces cell by cell, find that a trace can't touch another net (a short circuit), route the shield on one layer with a detour, then on two layers with a trace on the bottom, and compare the copper. About 45 minutes.

Open the teacher guide: answers, solutions, slides and a worksheet.

Students will be able to

Before class

The board model: one trace per grid cell per layer, through-hole pads on both layers, steps of one cell (no diagonals). Real tools route at angles of 45°, check gaps (clearance) between copper, and route at finer grids; KiCad and EasyEDA both have an interactive router that pushes other traces aside.

Keyboard: the board can be focused (Tab); arrow keys move a cursor and Enter acts on the cell.

Curriculum hooks: Design and Technologies, engineering principles and systems; Digital Technologies, digital systems (hardware).

Running the lesson

  1. Predict: hold up two wires and ask what happens if two bare copper strips touch.
  2. Try: when GND is blocked, stop and ask for both answers (round, or under).
  3. Vary: the one-layer route takes a while; let early finishers try a different GND path.
  4. Make: compare copper lengths across the class.

The hard part (on purpose)

Routing takes patience: one cell at a time, and some nets block others. Suggest routing the short nets first and using Undo freely.

When students get stuck

Stretch and support

Stretch: Route the shield so GND is a wide area of copper on the bottom (a ground plane, many cells). Why do real boards do this?

Support: Give the VCC and OUT paths as cell lists to follow, then let students route GND.

Where it leads

Next: Design rules and ordering.

Real tools route at 45°, check clearance between copper, and pour ground planes; the Capstone project Design a PCB uses one.
