Parts that fit

Drawn the same size, a printed peg won't go in its hole: printers make holes smaller and pegs bigger. Plan a clearance: about 0.2–0.4 mm for a sliding fit, less for a tight press fit. Every printer differs, so calibrate with a test card.

The lid you designed is exactly the size of the box's opening. You print both, and the lid won't go on. Nothing was measured wrongly. What happened?

Clearance is the gap between parts that fit together. Tolerance is how far a real size can be from the drawn size. A typical FDM printer squashes each line of plastic outwards a little, so holes print about 0.2 mm smaller and pegs about 0.1 mm bigger. (Yours may differ: that's what a test card is for.)

printed clearance fit
under 0 won't go in
0 to 0.15 mm press fit (tight, stays put)
0.15 to 0.4 mm sliding fit
over 0.4 mm loose (wobbles)
WidthMore contexts, same idea.
PredictRead the problem and decide what you think before you try anything. A wrong guess is fine: it shows you what to look for.

Same size

A 10 mm peg and a 10 mm hole are printed. The peg…

TryTry it on the board and compare the result with your prediction.

Try: make it slide

Try it yourselfYour edits are saved in this browser.

Make the hole bigger, a little at a time, until the peg slides in.

Use the board. This ticks when you get there.

InvestigateWork out why it happens, one step at a time.

Worked example: design the hole

Worked exampleBefore each step, say what you think comes next.
  1. peg drawn 10→printed 10.1\text{peg drawn } 10 \to \text{printed } 10.1Pegs print about 0.1 mm bigger.

Now check it with the numbers.

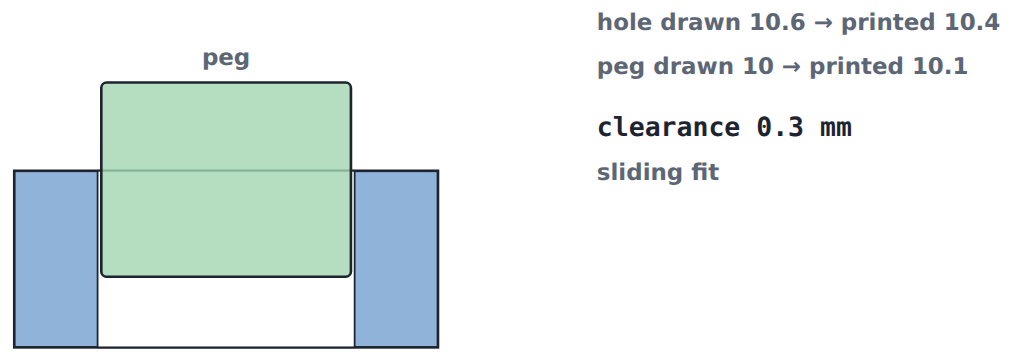

A 10 mm peg, a sliding fit with 0.3 mm of clearance after printing. What size should the hole be drawn (mm)?

Sam's lid peg won't go in its hole. Click the line where Sam's reasoning first goes wrong.

ModifyChange the problem on purpose and see what happens.

Vary: change one thing

Try it yourselfYour edits are saved in this browser.

A press fit for a 10 mm peg (it should stay put without glue).

Use the board. This ticks when you get there.

A 6 mm peg with a sliding fit.

Use the board. This ticks when you get there.

Modify TypicalChange the problem on purpose and see what happens.

Print a test card

PractiseA few on your own, to check you have it.

Fits

A 5 mm peg, hole drawn 5.2 mm. Printed clearance, and fit?

A 12 mm peg, a press fit with 0.1 mm of clearance after printing. Hole drawn (mm)?

MakeMake your own problem using what you have learned. Expect a few tries; that is normal.

A lid peg

Try it yourselfYour edits are saved in this browser.
Need a hint?

The peg is 8 mm. Work out the hole for 0.2 and for 0.3 mm of clearance.

Another hint

8.1 + 0.2 + 0.2 = 8.5; 8.1 + 0.3 + 0.2 = 8.6.

Another hint

Set the hole between 8.5 and 8.6.

A lid with an 8 mm peg should lift off easily but not rattle: 0.2 to 0.3 mm of clearance after printing.

Use the board. This ticks when you get there.

For teachers

Students see that a same-size peg and hole won't fit once printed, open the hole up to a sliding fit, work out a hole size from the peg, the printer's effect and the clearance wanted, design a press fit and a different peg size, print a tolerance test card, and design a lid peg's hole. About 40 minutes.

Open the teacher guide: answers, solutions, slides and a worksheet.

Students will be able to

Before class

The board's printer effect (holes −0.2 mm, pegs +0.1 mm) is typical of a 0.4 mm nozzle FDM printer, not exact. Print a tolerance test card on each school printer once and pin up the results: that replaces the board's numbers. Small holes print proportionally worse than large ones; vertical holes worse than horizontal.

Running the lesson

  1. Predict: pass round a printed peg and hole drawn the same size, if you have one.
  2. Worked example: two corrections, two lines.
  3. Test card: start the print early in the lesson.

The hard part (on purpose)

The two printer corrections (hole −0.2, peg +0.1) blur. Write them as two lines every time.

When students get stuck

Stretch and support

Stretch: Design a snap-fit lid: a small ridge on the peg and a groove in the hole.

Support: A card: hole drawn = peg + 0.1 + clearance + 0.2.

Where it leads

Next: Design for the printer (which way up).

What each step is for

Now you can
Next lesson3. Design for the printerA printer builds in layers: an overhang more than about 45° from vertical needs supports, and a part is weakest across its layer lines. Choose the way up that needs no supports and runs the layers along the load.
