Efficiency is the share of the energy put in that comes out as useful energy: efficiency = useful energy out ÷ total energy in × 100%. No real device is 100% efficient, because some energy always becomes by-products, usually heat. A device can give out more useful energy and still be less efficient.
Old filament light bulbs were banned in Australia from 2009. They worked fine. So why ban them?
Energy is never lost. This lesson asks how much of it does what you want.
Engage: Commit to a prediction before you test anything. A wrong guess is fine: it shows you what to look for.
Explore: Try it on the board and compare what happens with your prediction.
Explain: Use the particle model to explain what you saw.
Elaborate: Use the same idea in a new context.
Evaluate: Look back at your first ideas and what changed.
WidthMore contexts, same idea.
Make your prediction first. Help opens once you've locked it in.
EngageCommit to a prediction before you test anything. A wrong guess is fine: it shows you what to look for.
Engage: two bulbs
ExploreTry it on the board and compare what happens with your prediction.
Explore: build the diagrams
Use the sliders or + and −. The board tells you when the outputs add up to the input.
Try it yourselfYour edits are saved in this browser.

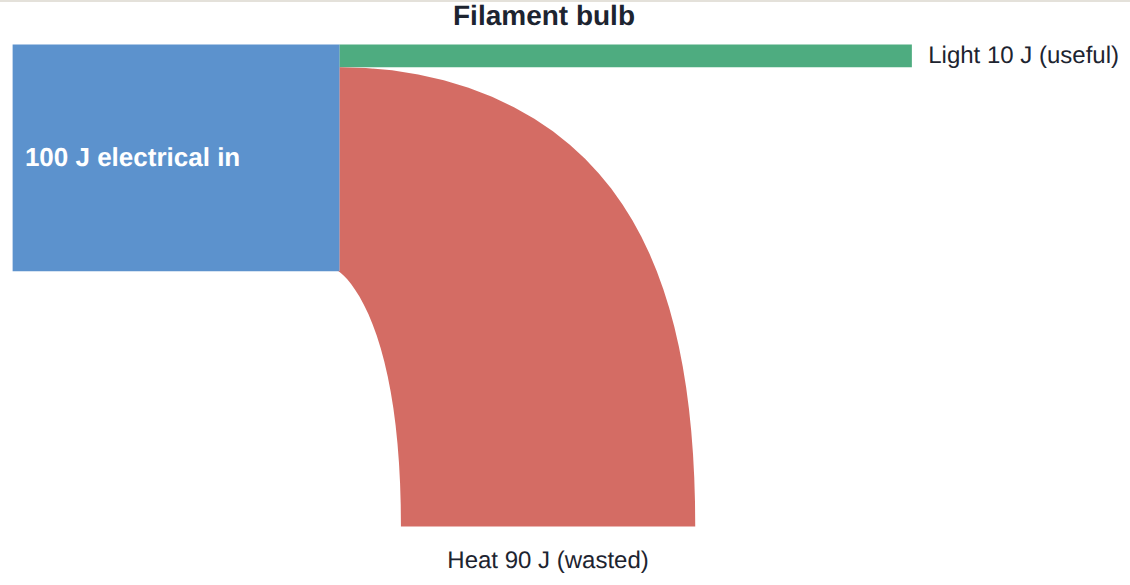

A filament bulb takes in 100 J and gives out 10 J of light. Set the outputs so every joule is accounted for.
Use the board. This ticks when you get there.
An LED bulb takes in 100 J and gives out 40 J of light. Set its outputs.
Use the board. This ticks when you get there.
ExplainUse the particle model to explain what you saw.
Explain: calculating efficiency
In your book: work out the efficiency of each bulb you built. Then write one sentence explaining why a bulb that gives out more light can still be less efficient.
A kettle takes in 2000 J and 1800 J goes into heating the water. What is its efficiency (%)?
An electric motor takes in 500 J and does 150 J of useful work lifting a load. What is its efficiency (%)?
Elaborate TypicalUse the same idea in a new context.
Elaborate: a car engine
Try it yourselfYour edits are saved in this browser.
A car engine: 100 J of chemical energy in fuel gives 25 J of movement, 65 J of heat and 10 J of sound. Build its diagram.
Use the board. This ticks when you get there.
What is the engine's efficiency (%)?
Elaborate WiderUse the same idea in a new context.
Elaborate: energy star ratings
EvaluateLook back at your first ideas and what changed.
Evaluate: look back
Write one sentence: "At first I thought… Now I think… because…"
Revision summary
Efficiency = useful energy out ÷ total energy in × 100%.
It is a proportion: a device that gives out more useful energy can still be less efficient.
No real device is 100% efficient: some energy always becomes by-products, usually heat.
More efficient devices need less energy input for the same job.
