A cam is a shaped wheel; a follower rests on it and rises and falls as it turns. The cam's shape decides the follower's path, which a displacement graph shows. Students read graphs from four cams, match cams to jobs, and choose a cam for a toy.
A toy bird must pop up, wait, and drop. A motor just turns. What shape of wheel turns one into the other?
A cam is a wheel with a shaped edge, turned by an axle. A follower rests on the edge and slides up and down in a guide as the cam turns. A displacement graph shows the follower's height against how far the cam has turned.
Cams time things: engine valves, toys, sewing machines, music boxes.
Predict: Read the problem and decide what you think before you try anything. A wrong guess is fine: it shows you what to look for.
Try: Try it on the board and compare the result with your prediction.
Investigate: Work out why it happens, one step at a time.
Modify: Change the problem on purpose and see what happens.
Practise: A few on your own, to check you have it.
Make: Make your own problem using what you have learned. Expect a few tries; that is normal.
Make your prediction first. Help opens once you've locked it in.
PredictRead the problem and decide what you think before you try anything. A wrong guess is fine: it shows you what to look for.
A round cam off centre
TryTry it on the board and compare the result with your prediction.
Try: four cams
Was your prediction right? The round cam's follower moved 20 mm: twice the offset.
Try it yourselfYour edits are saved in this browser.
Turn the eccentric cam once and watch the graph.
Use the board. This ticks when you get there.
Choose the pear cam and turn it.
Use the board. This ticks when you get there.
Choose the snail cam and turn it.
Use the board. This ticks when you get there.
Choose the heart cam and turn it.
Use the board. This ticks when you get there.
InvestigateWork out why it happens, one step at a time.
Worked example: read the graph
Worked exampleBefore each step, say what you think comes next.
heart cam, lift 20 mmIt rises steadily for half a turn (180°), then falls steadily.
90÷180=21At 90°, the cam has turned half of its rising part.
21×20=10 mmA steady rise is a straight line, so the height is the same fraction of the lift.
at 270∘: (360−270)÷180×20=10 mmOn the way down, count the degrees left until 360°.

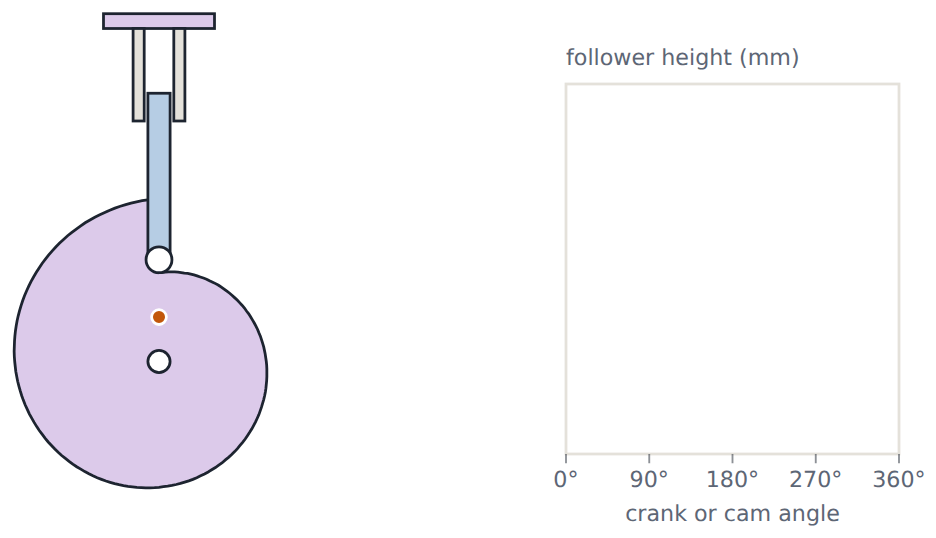

Now a snail cam, which rises for the whole turn.
A snail cam with a 30 mm lift rises steadily for a whole turn. How high is the follower after 120°, in mm?
Match each cam to its follower's path.
Eccentric
Pear
Snail
Heart
ModifyChange the problem on purpose and see what happens.
Vary: choose the cam
Try it yourselfYour edits are saved in this browser.
A toy bird must rest for half a turn, then pop up and down. Choose the cam and turn it.
Use the board. This ticks when you get there.
A toy hammer must lift slowly and fall with a bang. Choose the cam and turn it.
Use the board. This ticks when you get there.
A model pump rod must move up and down smoothly, with no sudden changes, by 10 mm. Choose the cam, set the lift and turn it.
Use the board. This ticks when you get there.
PractiseA few on your own, to check you have it.
Cams
An eccentric cam's axle is 8 mm off centre. What is the follower's lift, in mm?
A heart cam with a 24 mm lift. How high is the follower at 45°, in mm?
MakeMake your own problem using what you have learned. Expect a few tries; that is normal.
A cam for a toy
Need a hint?
Steady rise and steady fall: which graph is made of straight lines?
Another hint
The heart cam. Now set how far it must rise.
Try it yourselfYour edits are saved in this browser.
A toy fish must rise 25 mm at a steady speed and sink at a steady speed, over and over. Choose the cam, set the lift and turn it.
Use the board. This ticks when you get there.
For teachers
Students turn four cams (eccentric, pear, snail, heart) and read each follower's displacement graph, find that an eccentric cam lifts by twice its offset, calculate heights on straight-line rises, choose cams for toys, and design one. About 40 minutes.
I can explain how a cam's shape decides its follower's path.
I can read a displacement graph: rise, fall and rest (dwell).
I can choose a cam for a motion I need.
Before class
Cardboard cams on a pencil axle with a straw follower make this concrete in ten minutes. Automata (cam toys) are a good Make extension in class.
Simplifications: the follower is a roller that always touches the cam (real followers need a spring or gravity to keep contact), the cam turns slowly, and the profiles are idealised (a real snail cam's drop is a short curve, not a cliff).
Curriculum hooks: Design and Technologies, engineering principles and systems (primary); Maths, reading graphs, proportion.
Running the lesson
Predict: draw a circle with an off-centre dot; ask where the edge is nearest and farthest from the dot.
Try: pause after the pear cam and ask what a flat line on the graph means.
Worked example: point out that steady rises are straight lines, so height is a fraction of the lift.
Make: invite students to sketch their own toy's graph before choosing the cam.
The hard part (on purpose)
Students read the graph as a picture of the cam. Keep asking: what does the follower do while the cam turns from here to here?
When students get stuck
A student says a round cam can't move the follower. Ask: Where is the axle? Is the edge always the same distance from it? Fix: Off centre, the edge's distance from the axle changes.
A student reads the graph as the cam's outline. Ask: What is on the across axis? Fix: Angle turned; the up axis is the follower's height.
A student picks the heart cam for a sudden drop. Ask: Is there a vertical line on the heart's graph? Fix: Only the snail cam drops suddenly.
Stretch and support
Stretch: Sketch the displacement graph for a cam that rests, rises, rests at the top, then falls. What shape is the cam?
Support: Print the four displacement graphs and four cam pictures to match before the board.
Where it leads
Next: Four-bar linkages, the third way of changing motion.
Real examples: engine valves (camshaft), sewing machines, music boxes, automata, toy pull-alongs.
a round cam off centre: An eccentric cam is a circle on an off-centre axle. Students expect the follower to rise by the offset; it rises by twice the offset, the same move as the crank's stroke.
Try: four cams: Turning each cam and reading its graph builds the link between shape and path before any rules: rest (dwell), steady rise, sudden drop.
Worked example: read the graph: A steady rise is a straight line, so height is a proportion of the angle; students read and calculate heights at an angle. A match ties each shape to its path, and a question names why a snail cam must turn one way.
Vary: choose the cam: Students choose a cam for each job from the motion it needs: the move from graph to design.
cams: Lift from an eccentric's offset, heights from straight-line rises, and which cam fits a description.
a cam for a toy: Students turn a written motion into a cam and a lift, then test it: the full move from brief to mechanism.
Now you can
Explain how a cam's shape decides its follower's path.
Read a displacement graph: rise, fall and rest (dwell).
